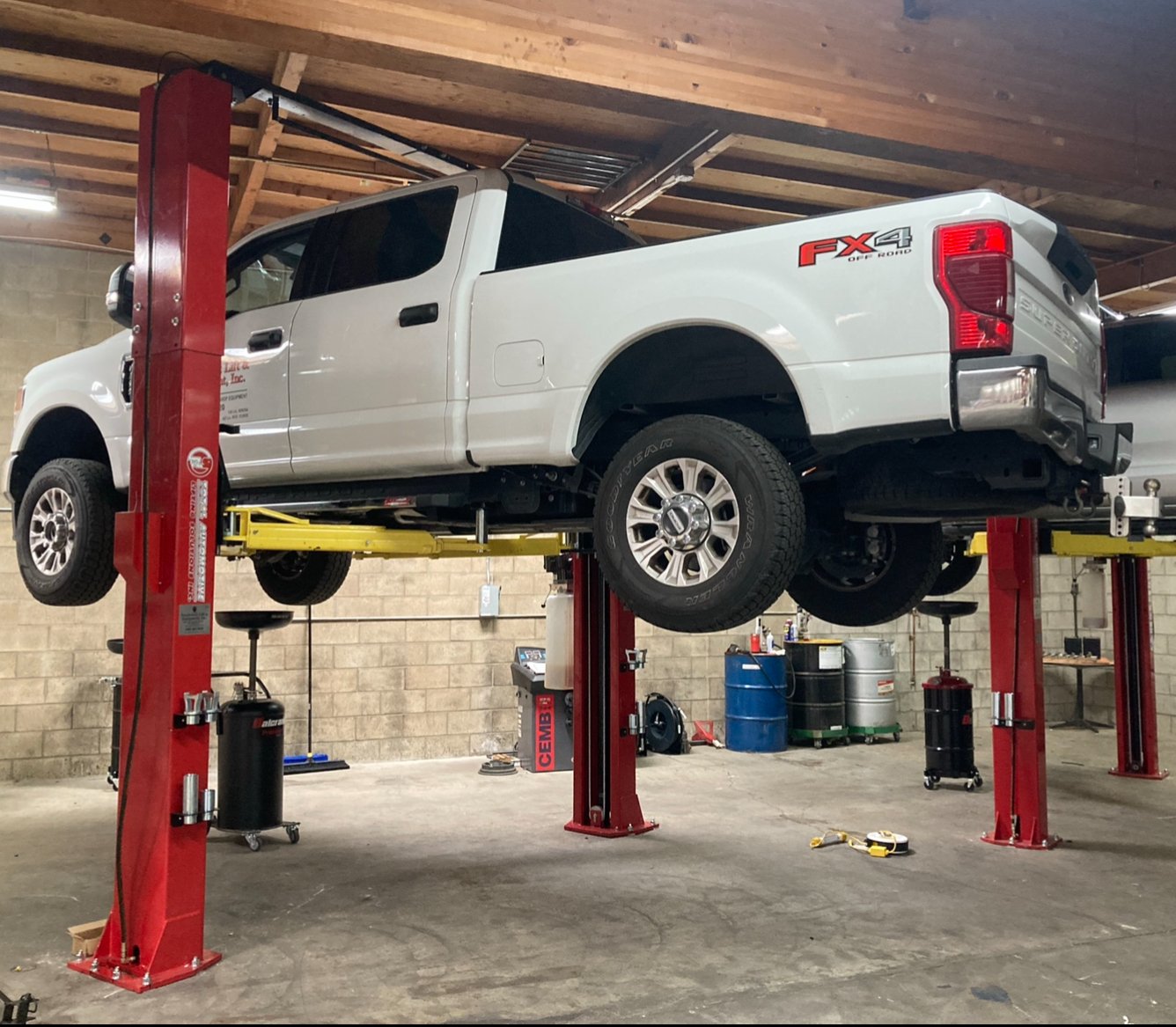

TLS210NRX1 10,000 Capacity “FlexMetric” Commercial 2 Post Vehicle Service Lifts
The TLS210N has a stronger and more stable structure, up to 20% heavier than many competitors. Two (2)” reinforcement tubes are welded inside the 11” x 7” with 1/4” wall columns to provide better stability with heavier loads.
Corrosion resistant - Steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied.
The TLS210N lifts higher to provide more under car work area with a 70-1/2” cylinder stroke that provides 76” lift without adapters with a maximum attainable lift height of 87”
Flexible vehicle loading - Flexmetric arm design uses three (3) piece “offset” front and straight (3) piece rear lifting arms for optimum asymmetric and symmetric loading opportunities.
Reduced installation costs - field adjustable height and width can easily adapt to most installation dimensions. Premium North American Components - North American made Bucher 2HP 3/8” equalizing cables and 2” ID hydraulic cylinders provide longer more dependable service life.
Reduced vehicle setup time - Acme screw “drop in” style lift pads have a lowered height with rubber pad of 4” and can be extended by 1-1/2”, 3” & 6” using nickel-plated drop-in adapters.
Power unit can be installed on either column.
Quieter operation less than <75 decibels - rubber mounting grommets reduce power unit noise. Car door protection- 11”x2” rubber door bumpers are mounted on the face of both lifting carriages to reduce door damage.
More models to choose from - standard Flexmetric design with 3 piece lifting arms, symmetric version with equal length straight arms, extended height 172” and choice of red or blue.

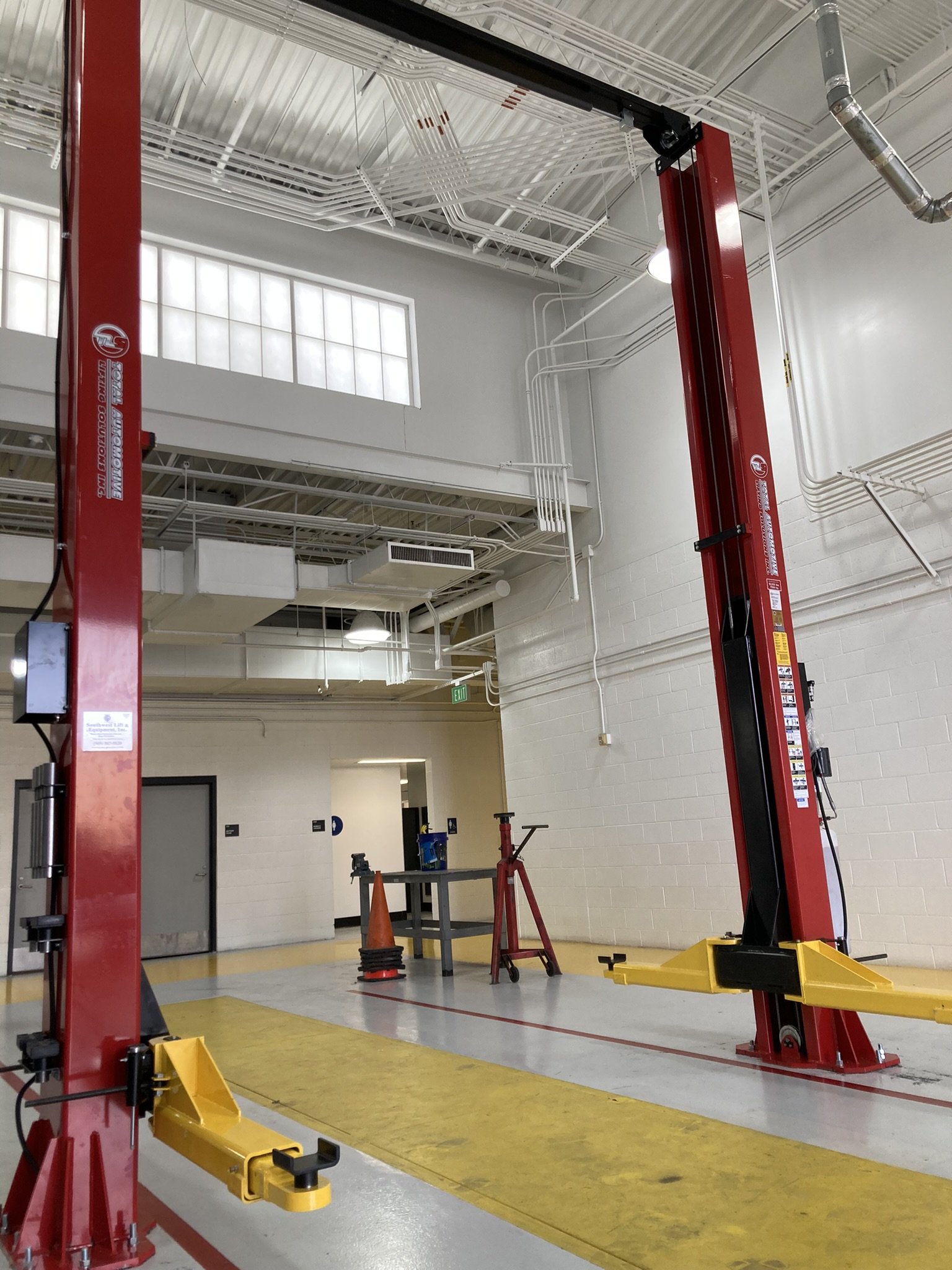

TLS212NSRX1 12,000 Capacity Symmetric Commercial 2 Post Vehicle Service Lifts
Corrosion resistant protection - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied.
Lifts higher to provide more under car work area - the 70-1/2” long cylinder stroke provides 76” lift without adapters with a maximum attainable lift height of 87”
Flexible vehicle loading - Flexmetric arm design uses three (3) piece “offset” front and straight (3) piece rear lifting arms for optimum asymmetric and symmetric loading opportunities.
Reduced installation costs - field adjustable height and width can easily adapt to most installation dimensions. Premium North American Components - North American made Bucher 2HP / 1.5kw power unit, 3/8” 9.5 equalizing cables and 2” ID hydraulic cylinders provide longer more dependable service life.
Reduced vehicle setup time - Acme screw “drop in” style lift pads have a lowered height with rubber pad of 4” and can be extended by 1-1/2”,3”, or 6” using nickel plated drop in adapters. Power unit can be installed on either column.
Quieter operation less than <75 decibels - rubber mounting grommets reduce power unit noise. Car door protection - 11” x 2” rubber door bumpers are mounted on the face of both lifting carriages to reduce door damage.
More models to chose from - standard Flexmetric design with 3 piece lifting arms, symmetric version with equal length straight arms, and choice of red or blue.
TLS216SRX1 Two Post Lift 16,000lbs. Capacity Symmetric For Light & Medium Duty Trucks
Built to higher quality standard 100% North American made - premium US made Monarch (Bucher) 4HP/ 3 kw power unit, 3/8” non fatigue equalizing cables, 5” steel pulleys and 2” ID Hydraulic Cylinders.
Greater flexibility - available in a 16,000 lbs. capacity with lighter arms and a lowered pad height of 3-1/2”/ 89mm or the heavy duty 18,000 lbs. version with heavy non sag arms and a 5-1/2” pad height.
More working room for larger trucks - 120-1/2 ”between the inside of the columns and 192-1/2” under the shut off bar.
Stronger and more stable structure - single piece columns 15” x 9” up to 199-1/4” tall can be custom ordered to fit your building. Large irregular shaped base plate 17” x 31”.
Corrosion resistant protection - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied.
Lifts higher to provide more under car work area - the 72” long cylinder stroke provides 76” lift without adapters with a maximum attainable lift height of 85-1/2”.
Ease of operation - Positive air release mechanical locking system with stainless steel air cylinders. Includes built in air regulator / filter water trap. Power unit can be installed on either side.
Reduced vehicle setup time - “Drop in” steel saddle style lift adapters can be extended in height with 1-1/2”, 4” or 10” steel adapters.

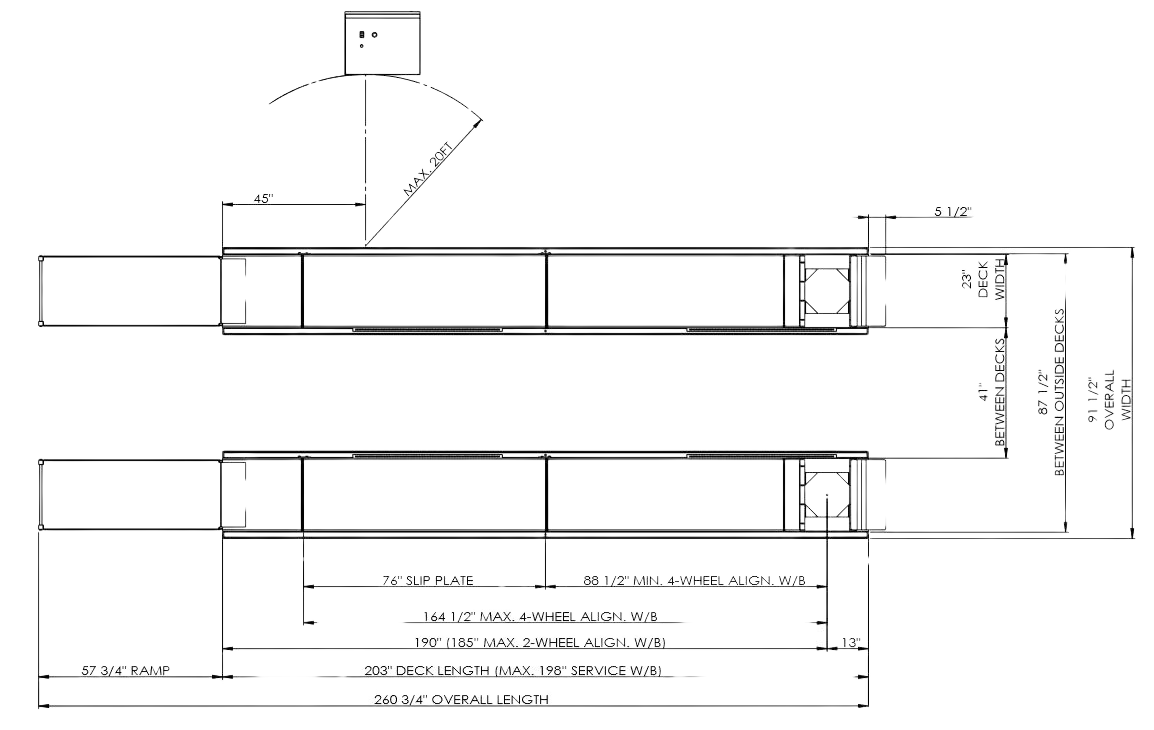

TLSS16ALORX1-16,000 lb. Capacity Precision Wheel Alignment or Service Lift
Flush or Surface Mounted 203” Long Runways
• Built to higher quality standard; 100% North American made - premium US Leeson 3HP / 2.2kw motor and HPI pump.
• Superior structural strength provides longer life and more precise alignments - Non flex double wall runways with built in “Z” rail and heavy duty 3” x 6.5” x 3/8” wall tubular legs
• Greater flexibility with more models to choose from - Available in surface or flush mounted, alignment or service deck and a choice of floor mounted “console” control or space saving wall/floor mounted power unit with pendant control.
• Premium options and accessories can expand the capabilities and service life - Stainless steel radius plates and rear steer plates, built in tire inflation hoses, removable work steps, LED runway lighting and premium heavy duty extended life 5 year warranty HD jacking beams
• Lower maintenance costs -steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied. Zirk style grease fittings at all hinge points. Runway under rear slip plates is open to prevent water and dirt collecting.
• Precision levelling feature provides more accurate alignments - PCB Control with linear transducers control level to within 5/32” / 4mm. The full adjustable floor mounted rack and pinion style “gear blocks” allow for precise levelling.
• Low pressure hydraulics provides longer life - 2” x 6” / “Break Out” cylinders allow the 25” x 4-1/2” ID cylinders to operate at <2500 psi under full load.
• Designed for greater technician productivity - there are no obstructions between the runways or base frame. The lift rises 74” in 58 seconds with 20 locking positions.
Built in runway compressed air outlets front and rear.

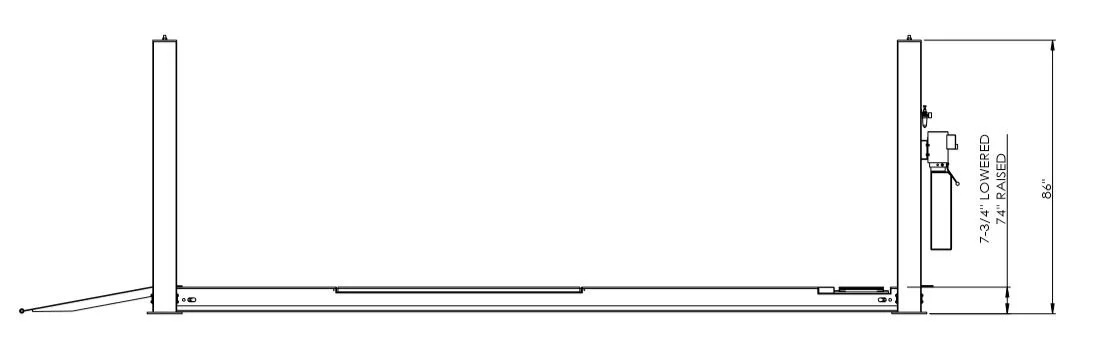

TLS415ALOXR1 / TLS415FDOXR1
15,000lbs. Capacity Alignment or Service 4 Post Lift Runway Lengths 210” or 238”
• OPEN OR CLOSED FRONT”4 POST WHEEL ALIGNMENT 15,000 LBS. Capacity
Built to higher quality standard; 100% North American made - Premium Bucher 2HP power unit.
Corrosion resistant protection - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied.
Superior structural strength provides longer life and more precise alignments - Non flex double wall 23” wide runways with built in “Z” rail. Heavy duty 10” x 8-3/8” x 1/4” wall / wall columns and 3” x 8-1/4” tube traverse beams.
Greater flexibility with more models to choose from - Available in two runway lengths with built in wheel alignment or service deck. Lift can be ordered in red or blue.
Premium options and accessories can expand the capabilities and service life -Stainless steel radius plates and rear steer plates, built in tire inflation hoses, removable work steps, LED runway lighting and premium long life 5-year warranty HD jacking beams.
Lower maintenance costs - Zirk style grease fittings at all 1-1/2” plated hinge pins. Runway under rear slip plates is open to prevent water and dirt collecting. Thirty 7/8” / enclosed plated steel slip plate balls provide better support with minimal maintenance.
Extended Life “Non-Twist” Cable design - Machined steel nickel plated 9” pulleys with bronze self-lubricating bushings. Non spin fatigue resistant 9/16” cables are routed on double stacked pulleys (versus four stacked) to reduce stress and wear.
Low pressure hydraulics provides longer life - 4”ID x 65” cylinder is mounted under the runway and use a premium “Parker” seal and wear ring with chrome plated plunger shaft.
Designed for optimum productivity - Single point control with stainless steel cylinder air releases engage 12 locking positions. Adjustable locking ladders 81” x 2-3/4” x 3/8” / thick allow for accurate levelling. Power unit can be mounted on a front or rear column. Built in runway compressed air outlets front and rear.
